Submit ReviewKN 93
Description: CaM kinase II inhibitor; also K+ channel blocker (KV)
Chemical Name: N-[2-[[[3-(4-Chlorophenyl)-2-propenyl]methylamino]methyl]phenyl]-N-(2-hydroxyethyl)-4-methoxybenzenesulphonamide
Purity: ≥98% (HPLC)
Biological Activity for KN 93
KN 93 is a potent, cell permeable inhibitor of CaM kinase II (IC50 = 0.37 μM). Also a direct extracellular open channel blocker of voltage-gated potassium channels (IC50 = 307 nM for KV1.5) and abolishes IKr in ventricular myocytes (IC50 = 102.6 nM) independently of CaM kinase II inhibition.
Water soluble form and Negative Control also available.
Technical Data for KN 93
| M. Wt | 501.04 |
| Formula | C26H29ClN2O4S |
| Storage | Store at +4°C |
| Purity | ≥98% (HPLC) |
| CAS Number | 139298-40-1 |
| PubChem ID | 5312122 |
| InChI Key | LLLQTDSSHZREGW-AATRIKPKSA-N |
| Smiles | O=S(N(CCO)C1=C(CN(C)C/C=C/C3=CC=C(Cl)C=C3)C=CC=C1)(C2=CC=C(OC)C=C2)=O |
The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.
Tocris products are intended for laboratory research use only, unless stated otherwise.
Solubility Data for KN 93
| Solvent | Max Conc. mg/mL | Max Conc. mM | |
|---|---|---|---|
| Solubility | |||
| DMSO | 50.1 | 100 with gentle warming |
Preparing Stock Solutions for KN 93
The following data is based on the product molecular weight 501.04. Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which will affect the solvent volumes required to prepare stock solutions.
| Concentration / Solvent Volume / Mass | 1 mg | 5 mg | 10 mg |
|---|---|---|---|
| 1 mM | 2 mL | 9.98 mL | 19.96 mL |
| 5 mM | 0.4 mL | 2 mL | 3.99 mL |
| 10 mM | 0.2 mL | 1 mL | 2 mL |
| 50 mM | 0.04 mL | 0.2 mL | 0.4 mL |
Molarity Calculator
Molarity Calculator
Calculate the mass, volume, or concentration required for a solution.
Reconstitution Calculator
Reconstitution Calculator
Dilution Calculator
Dilution Calculator
Calculate the dilution required to prepare a stock solution.
Product Datasheets for KN 93
References for KN 93
References are publications that support the biological activity of the product.
Patel et al (1999) Calcium/calmodulin-dependent phosphorylation and activation of human Cdc25-C at the G2/M phase transition in HeLa cells. J.Biol.Chem. 274 7958 PMID: 10075693
Rezazadeh et al (2006) KN-93 (2-[N-(2-Hydroxyethyl)]-N-(4-methoxybenzenesulfonyl)]-amino-N-(4-chlorocinnamyl)-N-methylbenzylamine), a calcium/calmodulin-dependent protein kinase II inhibitor, is a direct extracellular blocker of voltage-gated J.Pharmacol.Exp.Ther. 317 292 PMID: 16368898
Sumi et al (1991) The newly synthesized selective Ca2+/calmodulin dependent protein kinase II inhibitor KN-93 reduces DA content in PC12h cells. Biochem.Biophys.Res.Comm. 181 968 PMID: 1662507
Hegyi et al (2015) KN-93 inhibits IKr in mammalian cardiomyocytes. J.Mol.Cell.Cardiol. 89 173 PMID: 26463508
If you know of a relevant reference for KN 93, please let us know.
View Related Products by Target
View Related Products by Product Action
Keywords: KN 93, KN 93 supplier, K+, channel, blockers, KV, inhibitors, inhibits, Potassium, Channels, voltage-gated, voltage-dependent, CaM, Kinase, II, kinases, Calmodulin-Activated, calmodulin-dependent, Protein, Ca2+, Binding, modulators, Calcium, Signaling, Signalling, hERG, Human, Ether-A-Go-Go, Gene, KCNQ, K, Voltage-Gated, 1278, Tocris Bioscience
23 Citations for KN 93
Citations are publications that use Tocris products. Selected citations for KN 93 include:
Weng et al (2017) An Intrinsic Epigenetic Barrier for Functional Axon Regeneration. Neuron 94 337 PMID: 28426967
Glovaci and Chapman (2015) Activation of Phosphatidylinositol-Linked DA Receptors Induces a Facilitation of Glutamate-Mediated Synaptic Transmission in the Lateral Entorhinal Cortex. PLoS One 10 e0131948 PMID: 26133167
Thayer et al (2013) Increased neuronal activity fragments the Golgi complex. Proc Natl Acad Sci U S A 110 1482 PMID: 23297202
Pedersen et al (2009) Calmodulin kinase II initiates arrhythmogenicity during metabolic acidification in murine hearts. Acta Physiol (Oxf) 197 13 PMID: 19416122
Xu et al (2009) HyperDArgic tone erodes prefrontal long-term potential via a D2 receptor-operated protein phosphatase gate. MBio 29 14086 PMID: 19906957
Galván et al (2015) Synapse-specific compartmentalization of signaling cascades for LTP induction in CA3 interneurons. Neuroscience 290 332 PMID: 25637803
Abedini et al (2016) WNT5a is required for normal ovarian follicle development and antagonizes g.tropin responsiveness in granulosa cells by suppressing canonical WNT signaling. FASEB J 30 1534 PMID: 26667040
Arguello et al (2014) Involvement of amygdalar protein kinase A, but not calcium/calmodulin-dependent protein kinase II, in the reconsolidation of cocaine-related contextual memories in rats. Psychopharmacology (Berl) 231 55 PMID: 23873418
Guemez-Gamboa et al (2014) Non-cell-autonomous mechanism of activity-dependent neurotransmitter switching. Neuron 82 1004 PMID: 24908484
Gaamouch et al (2012) Interaction between αCaMKII and GluN2B controls ERK-dependent plasticity. J Neurosci 32 10767 PMID: 22855824
Draganov et al (2015) Modulation of P2X4/P2X7/Pannexin-1 sensitivity to extracellular ATP via iverm. induces a non-apoptotic and inflammatory form of cancer cell death. Apoptosis 5 16222 PMID: 26552848
Bonnefond et al (2015) Calcium signals inhibition sensitizes ovarian carcinoma cells to anti-Bcl-xL strategies through Mcl-1 down-regulation. Oncoscience 20 535 PMID: 25627260
Nygaard et al (2015) Melanoma brain colonization involves the emergence of a brain-adaptive phenotype. Biochem Biophys Res Commun 1 82 PMID: 25593989
Cohen et al (2015) Evolutionary and functional perspectives on signaling from neuronal surface to nucleus. PLoS One 460 88 PMID: 25998737
Raka et al (2015) Ca(2+)/calmodulin-dependent protein kinase II interacts with group I metabotropic glutamate and facilitates receptor endocytosis and ERK1/2 signaling: role of β-amyloid. Mol Brain 8 21 PMID: 25885040
Bemben et al (2014) CaMKII phosphorylation of neuroligin-1 regulates excitatory synapses. Nat Neurosci 17 56 PMID: 24336150
Hill and Muldrew (2014) Oestrogen upregulates the sarcoplasmic reticulum Ca(2+) ATPase pump in coronary arteries. Clin Exp Pharmacol Physiol 41 430 PMID: 24684418
Wang et al (2014) SynGAP regulates protein synthesis and homeostatic synaptic plasticity in developing cortical networks. PLoS One 8 e83941 PMID: 24391850
Seto et al (2013) Acute SimV. inhibits K ATP channels of porcine coronary artery myocytes. Biochem Pharmacol 8 e66404 PMID: 23799098
Balasubramanian et al (2013) AMP-activated protein kinase as regulator of P2Y(6) receptor-induced Ins secretion in mouse pancreatic β-cells. J Neurosci 85 991 PMID: 23333427
Mockett et al (2011) Calcium/calmodulin-dependent protein kinase II mediates group I metabotropic glutamate receptor-dependent protein synthesis and long-term depression in rat hippocampus. J Neurosci 31 7380 PMID: 21593322
Marsden et al (2007) NMDA receptor activation potentiates inhibitory transmission through GABA receptor-associated protein-dependent exocytosis of GABA(A) receptors. J Neurosci 27 14326 PMID: 18160640
Kim and Tsien (2008) Synapse-specific adaptations to inactivity in hippocampal circuits achieve homeostatic gain control while dampening network reverberation. Neuron 58 925 PMID: 18579082
Do you know of a great paper that uses KN 93 from Tocris? Please let us know.
Reviews for KN 93
Average Rating: 5 (Based on 1 Review.)
Have you used KN 93?
Submit a review and receive an Amazon gift card.
$50/€35/£30/$50CAN/¥300 Yuan/¥5000 Yen for first to review with an image
$25/€18/£15/$25CAN/¥75 Yuan/¥2500 Yen for a review with an image
$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image
Filter by:

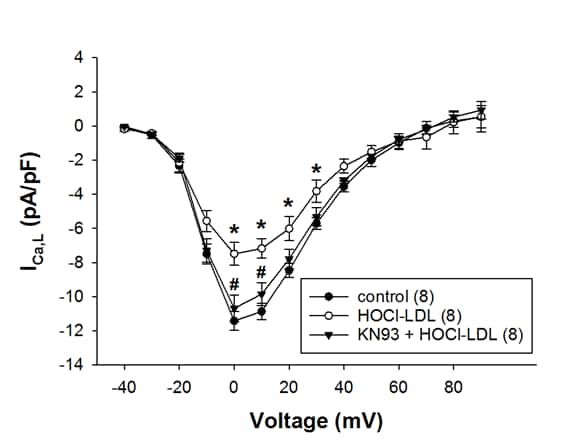

KN93 ameliorates HOCl-LDL-reduced ICa,L density in cardiomyocytes.
By
Christopher Trummer on 10/22/2018
Assay Type: In Vitro
Species: Other
Cell Line/Tissue: Cardiomyocytes
Guinea pig ventricular cardiomyocytes were treated with HOCl-LDL (250 µg/ml, 12-16 h)in the absence or presence of KN93 (5 µM) to follow L-type Ca2+ current (ICa,L) using patch clamp analysis. KN93 ameliorated HOCl-LDL-reduced ICa,L density.
